  Cold Cutting & Bevelling

  RWNA caters to your onshore or offshore on-site machining needs for cold cutting and bevelling. This method of pipe cutting and bevelling is highly recommended as:

  1. It is conducive in hazardous environments (where instances of fire or explosion are possible) due to the low rpm of milling or lathe process.
  2. It is a good replacement for traditional methods such as torches, reed cutters, and grinders.
  3. Field cuts are performed with greater accuracy and speed.
  4. Higher level of safety is assured.

  Benefits

  1. Fast and easy to set-up.
  2. Safe and cost-effective solution.
  3. With highly competent technicians and engineers as well as one of the largest and most comprehensive collections of cold-cutting machines in the SEA region to our name, we are ready to solve ad-hoc site issues and ensure quick and reliable performance.

  Specifications

  Low Clearance Split Frame:
  Size ranges from ½" to 108" Pipe OD.

  Travel L Cutter:
  Size ranges from 6" to 72" Pipe OD & 33ft Vessel Diameter.

  Specifications

  1. Mobile, convenient, quick and easy set up, work can be done instantly on-site.
  2. Short pipe end preparation time.
  3. Requires minimum clearance, able to fit into tight working areas and minimize machine height.
  4. Split frame design creates easy setup, installation and operation.
  5. Choice of pneumatic or hydraulic driven motor.
  6. Flexibility to choose from wide range of bevel types and sizes.
  7. Parts and accessories are also interchangeable.
  8. Able to cut and bevel large range of pipe sizes, schedule and materials.

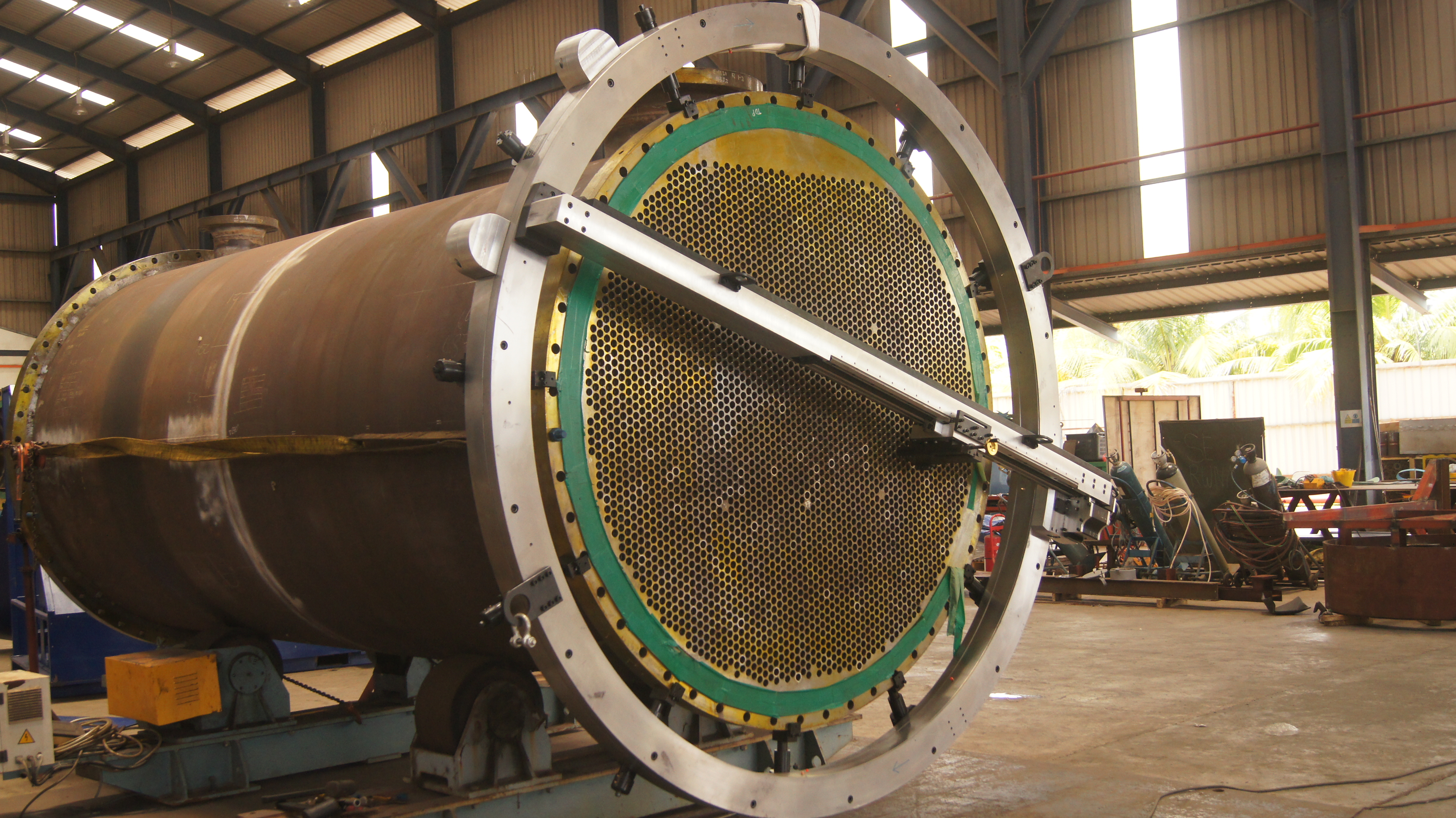

  Flange Facing & Milling

  RWNA's on-site flange facing and milling teams are committed to produce a lathe quality surface on all types of flange face, seal groove, weld preparation and also counter boring.

  Benefits

  1. A more permanent and cheaper alternative to expensive leak-sealing techniques or flange replacement, gauging and re-welding.
  2. Helps keep systems running efficiently and safely.
  3. Reclaim scrap flanges and flanged valves.
  4. Fast and easy to set-up.
  5. Solid performance. Ability to complete most jobs during scheduled down time, reducing any unnecessary delays.
  6. With highly competent technicians and engineers as well as one of the largest and most comprehensive collections of flange facing and milling machines in the SEA region to our name, we are ready to solve ad-hoc site issues and ensure quick and reliable delivery.

  Key Features

  1. Quick and easy set up for fast machining process.
  2. Choice of pneumatic or hydraulic driven motor.
  3. Allows easy on-site repair of large equipment previously made impossible.
  4. All facing types are available(RTJ, Raised Face, Lens Ring etc.).

  Specifications

  Flange Facing

  • Sizes ranges from ½" to 150" O.D. Flange.
  • External/internal-mounted.

  Milling

  • Size ranges from 25mm to 2,300mm.
  • XYZ axis.
  • Passes the flatness test.



  Pipe End Prep

  With RWNA's onshore and offshore on-site Pipe End Prep service, you can eliminate the reliance of oxy/acetylene for bevel preparation. Whether using manual welding or automated welding, this is the optimum way to manufacture bevels on-site.

  RWNA owns and operates Pipe End Prep machines which are engineered for precision on-site bevelling and counter boring of light wall, heavy wall pipe, tube or casing. The machines are designed for the rigorous service requirements for onshore and offshore environments.

  Key Features

  1. Quick and easy set up for fast machining process.
  2. Quality bevel and counter bore.
  3. Requires minimal clearance.
  4. Flexibility to choose from any bevel type.
  5. Precise measurements.
  6. End prep for elbow, tees & valves.

  Specifications

  • Size ranges from ¼" to 14".
  • Bevelling and counter boring application.
  • Internal and external clamp.



  Hydraulic Bolt Tensioning

  RWNA has highly trained technicians and state of the art equipment for all bolting needs. We offer an accurate method of tightening threaded fasteners with subsequent load bearing capabilities through hydraulic technology that does not directly turn the nut thereby avoiding frictional losses.

  RWNA's continuous training ensures highly skilled operating personnel for the application of accurate bolt loading in a controlled and safe manner that consistently meets the stringent needs in the oil and gas industry. With our highly trained personnel, we are also able to cater for highly customised solutions to our clients.

  Benefits

  1. Suitable for offshore, onshore topside and sub-sea applications.
  2. The applied load is controlled very accurately, because it is directly proportional to the pressure applied to the tensioner.
  3. Operation of tooling and improved accuracy reduces time required to retighten the load.
  4. Tensioning allows for loading multiple fasteners in a joint at the same time.
  5. Uniform bolt loading ensures a high level of accuracy by applying a consistent force.
  6. Purely axial, tensile loading ensures no torsional stresses are introduced.
  7. With highly competent technicians and engineers as well as a large, state of the art and comprehensive collection of Hydraulic Bolt Tensioning equipment, we are ready to solve ad-hoc site issues and ensure quick and reliable delivery.

  Key Features

  1. Highly portable, convenient, quick and easy set up.
  2. Hydraulic-driven motor.
  3. Easily estimate friction co-efficiency.
  4. Zero inaccuracy as force is pre-set based on piston area and tensioning device pressure.

  Specifications

  Stud bolt size ranges from 1" to 3½"



  Hydraulic/Pneumatic Torque Wrench

  • RWNA owns and operates state of the art hydraulic & pneumatic torque wrenches supported by qualified and experienced manpower.
  • A hydraulic torque wrench is a tool designed to exert torque on a fastener to achieve proper tightening or loosening of a connection through the use of hydraulics. It can apply a pre-determined, controlled amount of torque to a properly lubricated fastener.

  Benefits

  1. Our hydraulic/pneumatic torque wrench system is cutting-edge, compact and an accurate tool for loosening and tightening bolted connection without damaging bolts.
  2. Tested and calibrated for high accuracy, reliable and repeatability.
  3. With highly competent technicians and engineers as well as a large and comprehensive collection of Hydraulic/Pneumatic Torque Wrenches, we are ready to solve ad-hoc site issues and ensure quick and reliable delivery.

  Key Features

  1. Rigid steel design ensuring durability, reliability and safety.
  2. High versatility: one hydraulic drive unit per torque capacity can be used to drive any hexagon head within that range.
  3. Quick and easy set up for efficient operation.
  4. Choice of pneumatic or hydraulic driven motors.
  5. Higher accuracy of up to +/- 3% with standard torque chart.

  Specifications

  Nut size ranges from 27mm to 145mm.



  Hot/Cold Tapping

  • RWNA presents the best hot/cold tapping solution that allows a branch connection to be made into piping or vessels while the system remains live and under working pressure.
  • RWNA provides solution for plant and pipeline system modifications with no requirement for expensive shutdowns which will reduce downtime and costs to our clients.
  • We use the latest internationally proven software to prepare the data for online welding. Our experienced machinists perform the tapping with the latest technology equipment.

  Benefits

  1. Ensures continuous system operations.
  2. Reduces downtime and costs for clients.
  3. Safe and cost-effective solution, allowing efficient repair or modification while under full operating conditions.
  4. The latest internationally proven software is used to prepare the data for online welding.
  5. With highly competent technicians and engineers as well as a large, state of the art and comprehensive collection of hot/cold tapping equipment, we are ready to solve ad-hoc site issues and ensure quick and reliable delivery.

  Key Features

  1. Additional branches allowing supply to and from other areas of the plant etc.
  2. Hot Taps performed on a variety of piping and vessel materials and mediums.
  3. No pipe content released to the atmosphere.
  4. Monitoring points for temperature probes.
  5. Entry points for isolation equipment (stopples).
  6. Cutting, realignment and re-welding of pipeline sections are unnecessary.

  Specifications

  Size ranges from ½" to 12".

  W3P Enclosure System (Habitat for Welding)

  RWNA's W3P Enclosure System is a SIRIM QAS internationally certified safety enclosure (also known as a welding habitat) for hot work, primarily welding. The system is designed to:

  • PROTECT: Confines flammable hot work residue for protection.
  • PREVENT: Isolates hot work area from hazardous environment to prevent explosion.
  • PRESSURIZE: Creates a positive pressure within the enclosure.

  W3P Enclosure System is light weight and made of fire retardant fabric which can withstand upto 550°re;C. The System also provides excellent resistance to oxidation, weathering and flexing. The enclosure comprises panels with sizes ranging from 1m x 1m and 1m x 2m that can be easily installed and dismantled through interchangeable zips. Specially designed panels include:

  1. Airlock door which prevent the ingress of hazardous substances upon entering and exiting.
  2. Modified panels to accommodate the working around of any obstruction.
  3. Emergency escape panel intended for easy evacuation in case of casualty or other emergency situations.
  4. Patch panels designed with fire retardant hook and loop to minimize leakage.

  Key Features

  1. Inflatable structure, designed for offshore platforms and petrochemical plants placement.
  2. Easy installation and disassembly via fabric panels with interchangeable zips.
  3. Expandable walls create spaces on platforms and isolate welding area.
  4. Airlock door prevents entry of hazardous substances.
  5. Simple control panel installed with auto shutdown system (upon gas detection) and emergency panel for fast evacuation.
  6. Automatic shutdown system is triggered when gas is detected, thus automatically shutting down the blower to pressurize the enclosure.
  7. Emergency push button is provided for manual system shutdown.
  8. Alarm during low pressure detection.
  9. Cost-effective, portable and simple control panel with auto shutdown system. Also saves costs and provides double protection during shutdown.

  Benefits

  1. Specially designed for optimal welding in horizontal area.
  2. Modifications (size of enclosures, etc.) can be made to meet requirements.
  3. Qualified technicians and engineers can creatively solve ad-hoc site issues.
  4. Highly customizable enclosures to meet all of our clients' needs.

  Specifications

  1. FR PVC-coated fabric is BS 5438 compliant and certified by SIRIM QAS International.
  2. Enclosure sewn with fire retardant thread and attached with fire retardant hook and loop.
  3. Consist of certified explosion proof equipment that is safe to use in hazardous environments.



  Line Boring and Hole Drilling & Threading

  RWNA offers both onshore and offshore on-site machining services for line boring as well as hole drilling and threading. Line boring is the process of enlarging a hole that has already been drilled (or cast). Hole drilling and threading is a process of making a hole and threading it, and is done using a versatile and portable drilling machine for general drilling and stud removal applications.

  Benefits of Line Boring include:

  • Eliminate costly dismantling.
  • Decrease production downtime.
  • High precision.
  • Light weight.
  • Easy to setup.

  Benefits of Hole Drilling and Threading include

  • Suitable for an array of on-site machining applications.
  • Uses the latest linear guide ways and heavy duty spindles with ISO standard spindle tapers.
  • Light weight.
  • Efficient with all materials.

  Key Features

  Line Boring

  1. Hollow hard chrome precision ground boring bar.
  2. Infinite variable feed rate and adjustable boring arms.
  3. Easy assembly and less production downtime.
  4. Eliminates transportation of equipment to repair/workshop area as it can be done on large equipment.

  Hole Drilling and Threading

  1. Linear rails & guides for accuracy and rigidity.
  2. Spindle accepts standard tooling.
  3. Direct spindle drive.
  4. Auto feed / hand feed gearbox and motor.
  5. Geared reduction spindle drive.
  6. Machine can be bolted directly to the work piece or an optional switch magnet base minus stud removal.
  7. Lessens damage when moving equipment.
  8. Lower costs and downtime instances.
  9. Eliminates transportation of equipment to repair/ workshop area as it can be done on large equipment.

  On-Site Valve Services

  On-Site Grinding & Lapping Machines for Safety Valves

  The grinding and lapping machine for stationary and on-site with excenter for the machining of sealing faces of safety valves. The machine has two separated drives, one drive operates the griding spindle, whereas the other drive provides the eccentic movement of the griding spindle. This produces a cross-hatched grinding pattern and a perfectly level sealing face.



  On-Site Special Tools for Grinding Conical Valve Seats

  Main used to repair tapered vavle seats in high-pressure shutoff and control valves. The seat face is machined using pieces of abrasive material that are fixed to cones. The pieces of material & the cones are secured to the tool holder using a clamping nut.



  Grinding & Lapping Consumables



  On-Site Portable Machine for Grinding & Lapping of Sealing Faces in Valve, Valve Disks, Flanges etc (3/8 inch - 64 inch)



  On-Site High Speed Grinding Machines for Machining Flat and Conical Seats in Valved & On Flanges (¾ inch - 60 inch)



  Valve Testing



  Surface Lapping



  Gate Valves Wedges & Control Valve Discs Grinding Table



  Advantages

  • Time saving
  • On-site service eliminates valve body removal requirements
  • Imporve valve lifetime and operating efficiency
  • Able to restore valve original performance
  • Cost efficient solution



  Subsea Pipeline & Structure Cutting

  DIAMOND WIRE SAW (DWS)

  • RWNA Subsea Diamond Wire Saw System has been specially designed to cut submerged pipes (horizontal and vertical), tubular structures and pipelines of varying materials and thickness. Operating on hydraulic power, it is remotely controlled using the Topside Control Panel including a hydraulic feed system. The cutting process can be monitored via a mounted camera.
  • What makes it so special is the wire cutting element infused with industrial diamonds, allowing it to cut pipes and structures quickly and efficiently compared to the conventional saw.

  DIAMOND WIRE SAW "DWS" is ideal for the following applications

  • Deep water cutting.
  • Shallow or deep water platform decommissioning.
  • Pipeline repair and maintenance.
  • Destructive pipeline decommissioning.
  • Cutting mixed materials (i.e. steel and grout).

  Benefits

  1. Remote controlled cutting.
  2. Reliable cutting method.
  3. Produces clean and even cuts.
  4. Cut is complete and verified when the wire travels through the tructure/pipe.

  Specifications

  Effortlessly cuts from 4" to 36" O.D.

  Key Features

  1. Constructed from lightweight aluminium plate.
  2. Easily replaceable long-life diamond wire cutting element.
  3. Hydraulic-driven synchronized clamping arms.
  4. Intelligent self-adjusting automatic feed system to ensure smooth and even cut.
  5. Flexible mounting on multiple positions: vertically, horizontally or any desired angles.
  6. Capable of easily cutting through most materials such as concrete coated pipe and cladded pipe.



  Hydraulic Driven Heavy Duty Split Frame (HD HDSF)

  RWNA also provides Subsea Cutting service using Hydraulic Driven Heavy Duty Split Frame "HD HDSF" machines depending on the cutting requirements. The machines have self-centering slides that reduce the set-up time for cutting. It is also equipped with lifting rings for horizontal or vertical mounting. Ring and pinion gears are fully enclosed for safety and durability. Mounted in place of the standard O.D. tracking slides, the cantilever slide performs multiple operations via simple reconfiguration.

  Benefits

  1. Designed for parting and beveling of larger diameter pipelines in the field.
  2. Constructed with a bigger cross section, larger gear sets and massive hardened steel components.
  3. Steel construction makes them suitable for extreme usage.
  4. Produces a precision lathe finish using safe cold cutting process.
  5. Minimizes risk of explosion in gas and petrochemical lines.
  6. Superior strength.
  7. Suitable for onshore surface and subsea cutting & bevelling operations.
  8. With highly competent technicians and engineers as well as a large, state of the art and comprehensive collection of HD HDSF machines, we are ready to solve ad-hoc site issues and ensure quick and reliable delivery.

  Key Features

  1. O.D tracking slides, parting and bevelling.
  2. Hydraulic driven motor.
  3. Ratcheting hinge mechanism for scissoring open and close.
  4. Self-squaring mounting system with adjustable clamping legs.
  5. Lifting hooks for vertical or horizontal mounting.
  6. Fully enclosed bearings and drive gears for safety and durability.

  Specifications

  Capable of cutting up to 108" O.D. tubular structure, vessel and pipes.



  DMG Mori CNC Turnmill Machine

  Brand

  • DMG Mori, NL2000
  • Made in Japan

  Main Functions

  • XYZ axis
  • Turning process
    • Threading
    • Hole drilling
    • Parting
    • Boring
    • Outside diameter (OD) and inside diameter (ID) profiling
  • Milling Process
    • Reaming
    • Counter bore
    • Profiling
    • Etc.

  Solutions and Advantages

  • Multipurpose; Able to perform both turning and milling funtions
  • Able to clamp workpiece with maximum diameter of 190mm and length of 400mm
  • High efficiency and time saving
  • Innovative turret head design and best turning properties

  Double Column Fully Automatic Bandsaw

  Brand

  • Model WA-460 HANC
  • Made in Taiwan

  Main Functions

  • Able to cut through solid materials into any desired size
  • Able to cut through metal, steel, wooden block and etc.

  Solutions and Advantages

  • Double column machine provides maximum capacity and rigidity
  • High performance machine with premium blade
  • Sturdy construction, low maintenance and high durability
  • Precision feed pressure and feed rate

  •

  Waterjet Cutting Machine

  Brand

  • Flow
  • Model MACH2 3120b
  • Made in USA

  Main Functions

  • Cutting process by using water and abrasive (garnet)
  • Able to cut through materials to produce complex shapes and angles at any desired size

  Solutions and Advantages

  • Rigid construction for structural integrity and heavy duty material
  • Cut through metal smoothly with maximum thickness of 2.5 inches
  • Reliable performance and consistent quality
  • No material delamination

  •

  TMT CNC Turning Machine

  Brand

  • TMT
  • Model L-290M
  • Made in Taiwan

  Main Functions

  • XZ axis
  • Turning process only
    • Threading
    • Hole drilling (Side drilling)
    • Parting
    • Facing
    • Outside diameter (OD) and inside diameter (ID) profiling

  Solutions and Advantages

  • Easy to operate
  • High precision and accuracy
  • Superior machining stability with one-piece cast iron base

  •

  DMGT NC Turning Machine

  Brand

  • DMTG
  • Model CKE 6150Z
  • Made in China

  Main Functions

  • XZ axis
  • Turning process
    • Reaming process
    • Threading
    • Hole drilling
    • Parting
    • Facing
    • Outside diameter (OD) and inside diameter (ID) profiling

  Solutions and Advantages

  • Easy to operate
  • Automatic forced lubrication
  • High speed, high spindle torque, big spindle bore

  •

  Pinnacle CNC Milling Machine (LV126)

  Brand

  • Pinnacle, LV126
  • Made in Taiwan

  Main Functions

  • XYZ axis linear way
  • Milling Process
    • Side drilling (a-axis attachment)
    • Profiling
    • Reaming
    • Etc.

  Solutions and Advantages

  • Able to clamp work piece with diameter up to 1000mm
  • High accuracy of positioning and repeatability
  • Rugged construction assures optimum rigidity and stability
  • High precision spindle for high quality machining
  • User friendly

  •

  Pinnacle CNC Milling Machine (LV105)

  Brand

  • Pinnacle, LV105
  • Made in Taiwan

  Main Functions

  • XYZ axis linear way
  • Milling Process
    • Profiling
    • Reaming
    • Etc.

  Solutions and Advantages

  • Able to clamp work piece with diameter up to 800mm
  • High accuracy of positioning and repeatability
  • Rugged construction assures optimum rigidity and stability
  • High precision spindle for high quality machining
  • User friendly

  •
  •

  NC Surface Grinding Machine (SD6120AA)

  Brand

  • PROTH
  • Model SD6120AA
  • Made in Taiwan

  Main Functions

  • Surface Grinding
  • Slotting
  • Parting tools

  Solutions and Advantages

  • Surface grinding is one of the oldest and widely used grinding process
  • User friendly, time saving, and cost saving
  • Consistent surface qualities
  • Reduce mechanical deformation of work pieces

  •
  •

  DMG MORI CNC Milling Machine (DMU 50)

  Brand

  • DMG MORI
  • Model: DMU 50
  • Made in Germany

  Main Functions

  • 5-axis universal milling
    • Positioning
    • Simultaneous
  • Milling process
    • Profiling
    • Reaming
    • Etc.

  Solutions and Advantages

  • Able to plan work piece with diameter up to 400mm
  • High flexibility with variable table options from fixed to swivel rotary table
  • High work piece weights and maximum precision
  • Optimum space economy with excellent accessibility to the working area
  • User friendly

  •
  •
  •

  DMG MORI CNC Turnmill Machine (DMU 125)

  Brand

  • DMG MORI
  • Model: DMU 125
  • Made in Germany

  Main Functions

  • 5-axis universal turn mill
    • Positioning
    • Simultaneous
  • Vertical lathe
  • Turning Process
    • Threading
    • Hole drilling
    • Parting
    • Boring
    • Outside diameter (OD) and inside diameter (ID) profiling
  • Milling process
    • Profiling
    • Reaming
    • Etc.

  Solutions and Advantages

  • Able to plan work piece with diameter up to 1000mm
  • DuoBLOCK® design for the highest precision and dynamics and best access to work piece
  • Multipurpose; Able to perform both turning and milling functions
  • Rugged construction assures optimum rigidity and stability
  • High precision machining up to 0.005mm

  •
  •
  •

• 5 Sacrificial Anode Installation and Specialized Coating

  Sacrificial Anode Installation and Specialized Coating

  RWNA has been supporting major pipeline coating applicators since 2001 for installation ofsacrificial anode on the coated line pipes.
  Sacrificial anode is part of the defencive system to ensure continuous integrity of a pipeline system.
  Bredero Shaw Sdn Bhd and PPSC Industries Sdn Bhd are among our major customers in this field of interest.
  We also provide services in specialized coatings and pin brazing.




• 6 Fabrication and Maintenance (Onshore and Offshore)

  • Fabrication, repairs and maintenance of piping, structures.
  • Repairs and maintenance of mechanical static equipment.

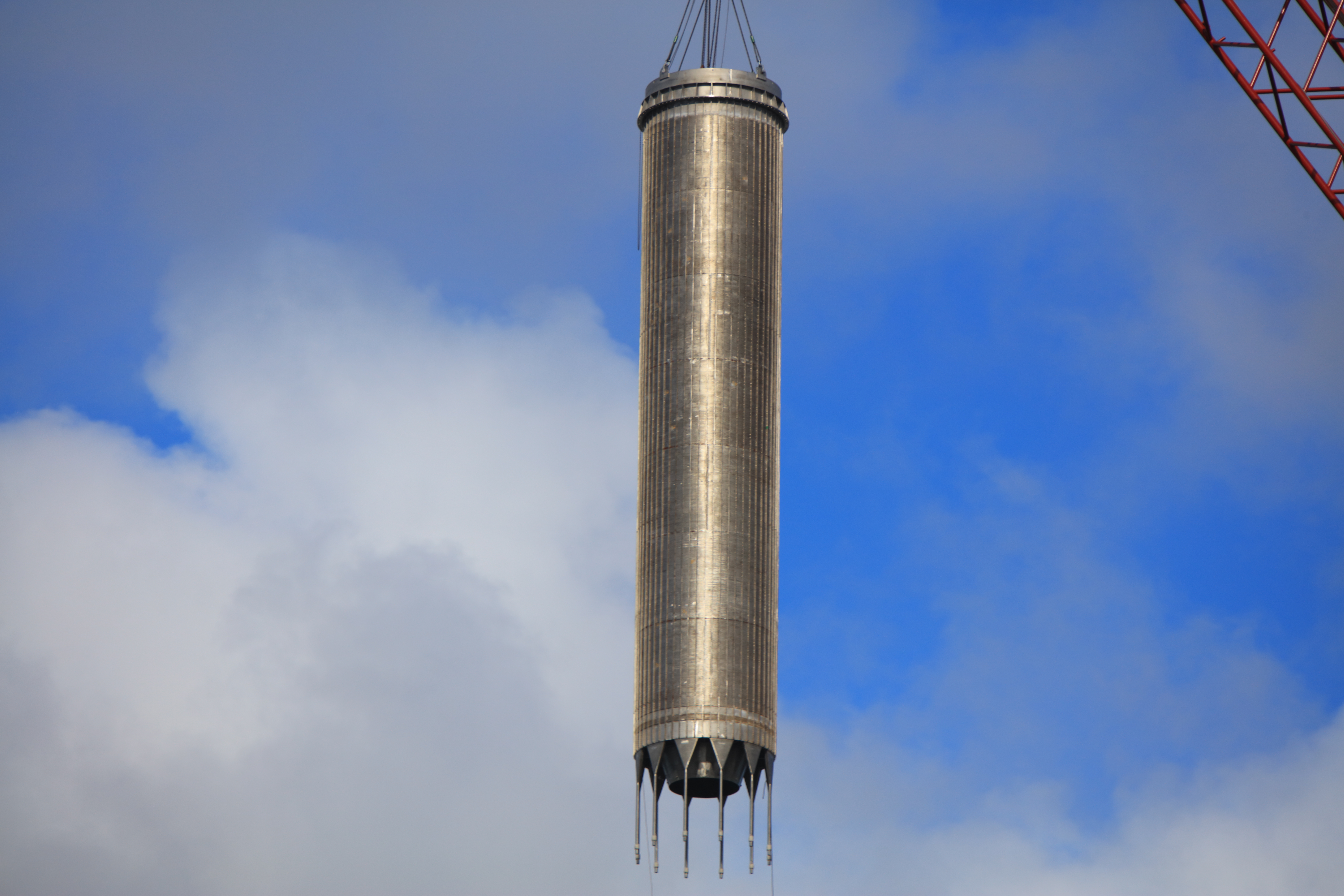

  Fabrication and Maintenance (Onshore and Offshore)

  • Fabrication and Installation of piping and Steel Structures
  • Construction of pipeline and other Pipeline Related Facilities
  • Blasting and Painting Works
  • Hook-up and Commissioning Services

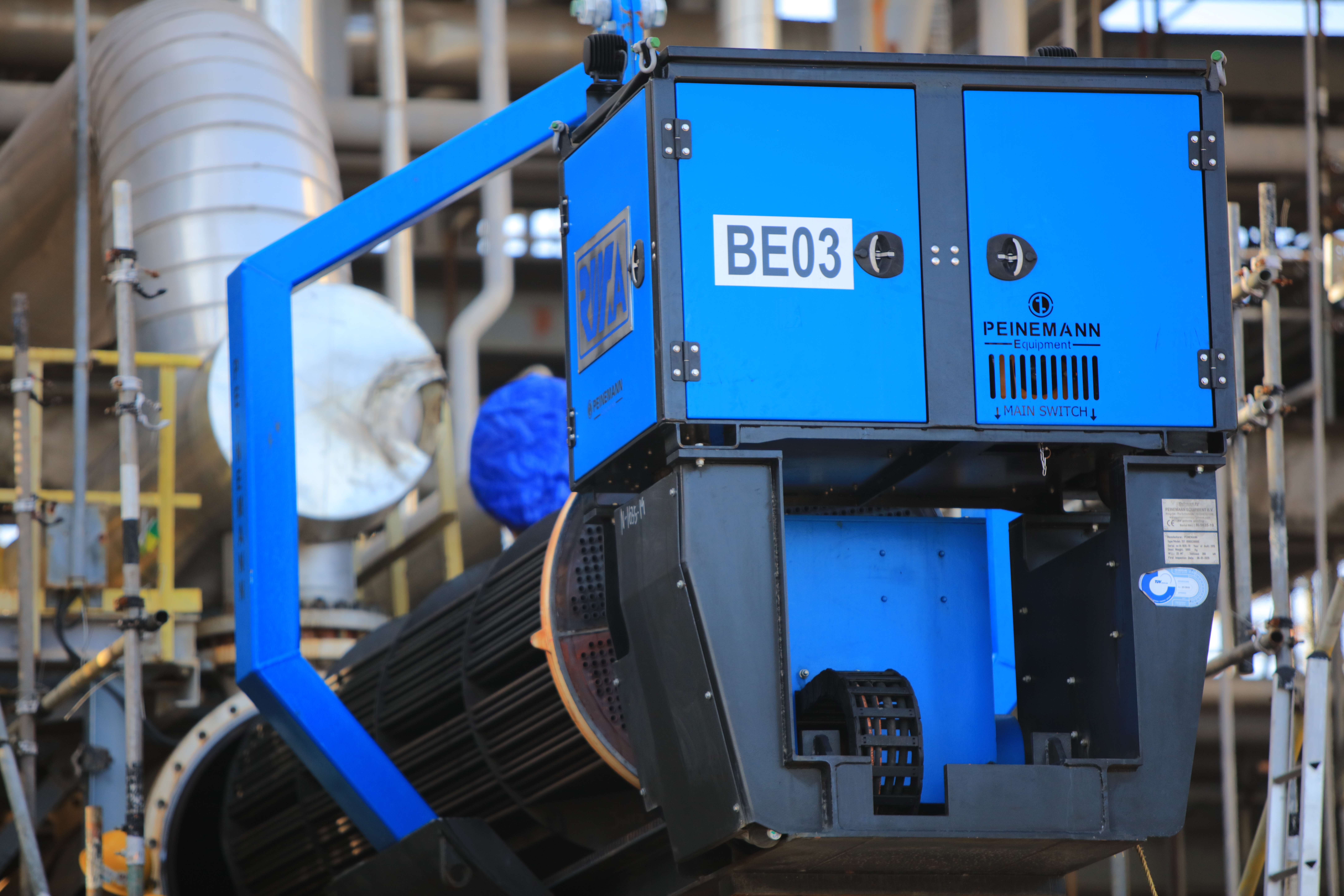

  • Plant Maintenance and Turnaround - Cleaning and Services of Vessel, Reactor, Heat Exchanger, Air Fin Cooler and Boiler
  • Plant Equipment Erection and Installation - New Installation and Replacement of Vessel, Reactor, Heat Exchanger, Fin Cooler and Boiler
  • Fired and Unfired Vessel Repair - approved by DOSH

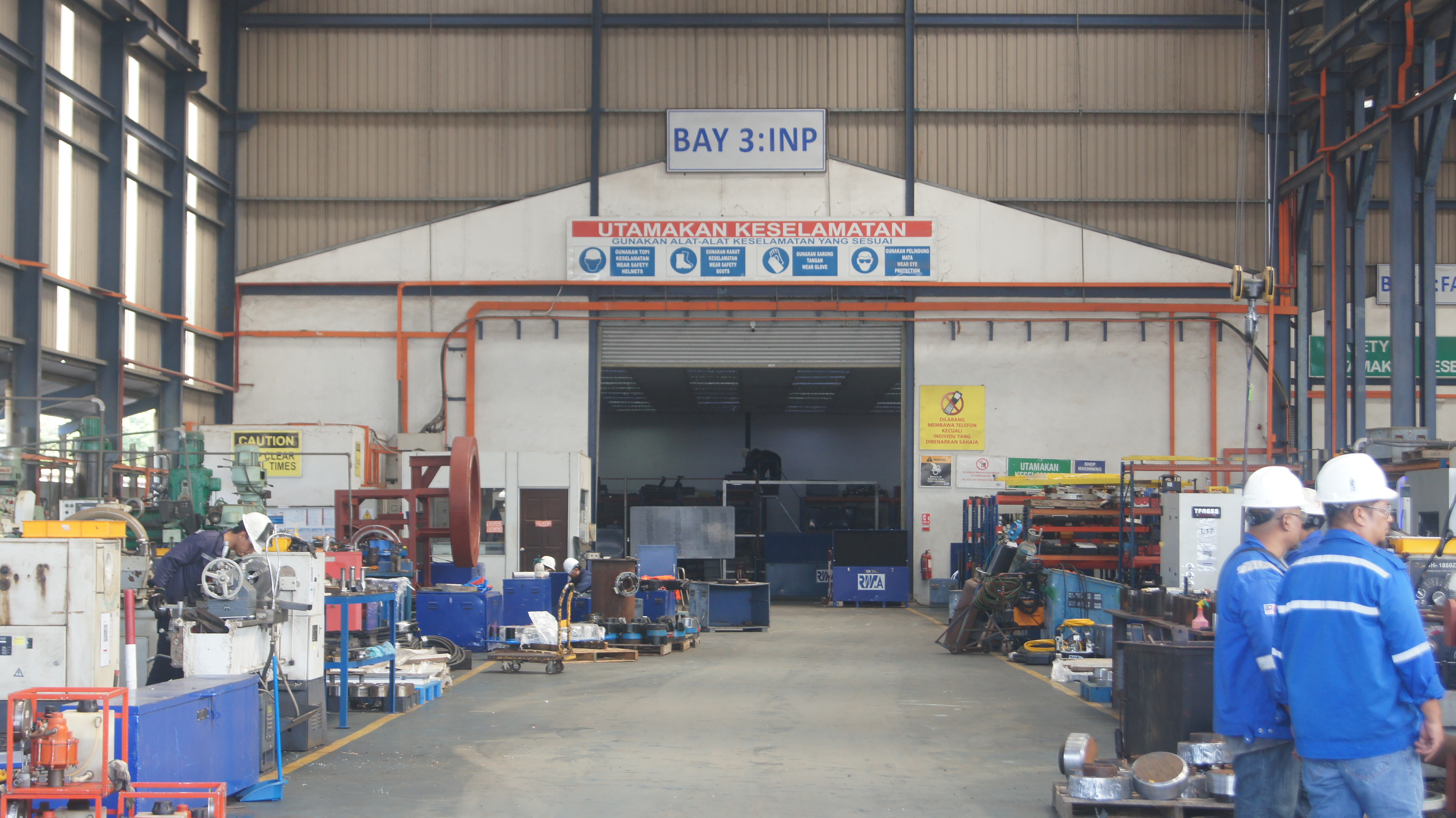

  RWNA Innovation & Production Centre (INP)

  Our Main Objective

  To provide customize solution provider to RWNA On-Site Services & Fabrication operation.

  Our List of Machines:

  1. DMG Mori CNC Turnmill Machine
  2. Double Column Full Automated Band Saw
  3. Waterjet Cutting Machine
  4. TMT CNC Turning Machine
  5. DMGT NC Turning Machine
  6. Pinnacle CNC Milling Machine (LV126)
  7. Pinnacle CNC Milling Machine (LV105)
  8. NC Surface Grinding Machine
  9. DMG Mori CNC Universal Milling Machine (DMU 50)
  10. DMG Mori CNC Milling / Turning Machine (DMU 125)

• 7 Manufacture, Assembly, Repairs & Alteration of Power Boilers (S) & Pressure Vessels (U,U2)

Policies

1. Quality Policy   View

2. Occupational Health & Safety Policy   View

3. Drug & Alcohol Policy   View

4. Stop Work Policy   View

5. Human Right Policy   View

Environmental Commitment

To meet our environmental responsibilities, RWNA implements the following initiatives:

Recycling

We have installed 2 sets of recycling bins at the premise, which consists of bins for glass, plastic, paper and cans. All staff are encourage to recycle and minimize waste. Our common practice is to print on both sides of the paper to maximize its usage. Recycling wastes are sent to the recycling centres.

E-Printing

E-RWNA system produce electronically printed reports, forms, master list and other work documents. We work towards in keeping softcopy records and minimize hardcopy records.

Scheduled Waste Management

Scheduled waste produced by our operation is managed according to standard and approved procedures.

Air Pollution Control System

We install a dust collector system to ensure that dust collected from our blasting operation is filtered and isolated from the environment. This ensures clean air emission into the environment, complying with the law and requirement.

Environmental Compliance

1. Air Quality

Air emission monitoring conducted on 3rd May 2018 shows that the concentration of air impurities emitted from Chimney 1 COMPLIED with the limit as specified in the Environmental Quality (Clean Air) Regulations 2014. Regulation 13.

2. Schedule Waste

Name of competent person: Ruzaima Wizana Abd Razak

List of Schedule Waste:

Estimate Enviromental Budget 2019 - RM100,000.00
Enviromental Spend 2018 - RM50,000.00

List of contractor:-

• On Site Machining (Onshore & Offshore)
• Fabrication, Installation & Maintenance (Onshore & Offshore)
• Sacrificial Anode Installation & Specialized Coatings

•

  PROJECT: COLD CUTTING 72" OD PIPE
  LOCATION: RWNA Fabrication Yard

•

  PROJECT: CUTTING & "J" BEVEL OF 62" OD E-18-02A/B/C BFW PREHEATED
  LOCATION: Tepat Teknik Klang, Selangor. MALAYSIA
  CLIENT: Tapat Teknik Sdn Bhd, Petronas Fertilizer Kedah, MALAYSIA

•

  PROJECT: GWF-1 CUTTING OF 16" [CRA] OD PIPE
  LOCATION: RWNA Fabrication Yard
  CLIENT: Bredero Shaw (M) Sdn Bhd/ Woodside Energy Limited

•

  PROJECT: YAMAL EUROPIPE GAS CUTTING & "J" BEVEL OF 56" OD PIPE
  CLIENT: Bredero Shaw (M) Sdn Bhd/ Nippon Steel Japan

•

  PROJECT: WHEATSTONE USPTREAM EXTERNAL PIPE END MACHINING OF 24" OD PIPE
  LOCATION: Bredero Shaw Kuantan, MALAYSIA
  CLIENT: Bredero Shaw (M) Sdn Bhd / CHEVRON AUSTRALIA PTL LTD

•

  PROJECT: GON UPSTREAM INTERNAL BORING OF 7.626" & 9.626" OD PIPE
  CLIENT: COATINGS (M) SDN BHD/ CHEVRON AUSTRALIA PTY LTD

•

  PROJECT: GUMUSUT KAKAP CUTBACK CONFIGURATION (SHAVING)
  LOCATION: Serimax Yard Pelabuhan Kuantan, MALAYSIA
  CLIENT: SERIMAX WELDING SERVICES (M) SDN BHD / SAPURA KENCANA-SAPURA ACERGY/ SABAH SHELL PETROLEUM COMPANY

•

  PROJECT: FLANGE RESURFACE PEDESTAL CRANE COLUMN OF 110" FOR BARGE H131 & H132
  LOCATION: Boustead Shipyard Pulau Jerejak, PENANG, MALAYSIA
  CLIENT: SRIMULTEX ENGINEERING/ BOUSTEAD NAVAL SHIPYARD/PACIFIC SINGAPORE SRIMULTEX ENGINEERING/BOUSTEAD NAVAL SHIPYARD/ PACIFIC SINGAPORE

•

  Project: W3P Enclosure System (Habitat for Welding)
  Location: Dulang Platform
  Client: Tanjung Offshore Services Sdn. Bhd.

•

  PROJECT: SUBSEA CONCRETE COATED LINEPIPE CUTTING AT BEKOK C
  CLIENT: GOM/Petronas Carigali Sdn Bhd

•

  PROJECT: FABRICATION & MAINTENANCE (ONSHORE & OFFSHORE)

•

  PROJECT: ONSITE VALVE GRINDING & LAPPING FOR 10” X 2500# GATE VALVE
  CLIENT: YTL Power Station

•

  PROJECT: ONSITE VALVE GRINDING AND LAPPING SERVICES FOR VARIOUS SIZE OF VALVE FOR CUFK TA 2017
  CLIENT: Enproserve (M) Sdn. Bhd.

•

  PROJECT: ONSITE VALVE GRINDING AND LAPPING SERVICES FOR 24” X 150# GATE VALVE
  CLIENT: Tati Production Sdn. Bhd.

•

  PROJECT:ONSITE VALVE GRINDING AND LAPPING SERVICES FOR VARIOUS SIZE OF VALVE FOR PCASB TA 2017
  CLIENT: Enproserve (M) Sdn. Bhd.

We seek dynamic, suitable and qualified individuals for the following positions:

1. Site Safety Supervisor (Based in Kuantan)

   QUALIFICATIONS:

   • Yellow book holder.
   • Valid OGSP.
   • Male or Female.

2. Safety Officer (Based In PCMTBE Gebeng Kuantan)

   REQUIREMENT:

   • At least 3 years experience in as Safety Officer Oil & Gas Petrochemical Turnaround, construction or maintenance.
   • Experienced as a Safety Officer in at least 3 major turnarounds.
   • NIOSH certified Qualified Safety & Health Officer (SHO).
   • Registered with DOSH (Prove must be submitted).

3. QC Engineer (Based In Kuantan)

   REQUIREMENT:

   • Candidate must possess Degree in Engineering field.
   • Fresh graduate encourage to apply.

4. Project Engineer (Based In Kuantan)

   REQUIREMENT:

   • Candidate must possess Degree in Engineering field.
   • Fresh graduate encourage to apply.

5. Electrician PW4 (Based In Kuantan)

   REQUIREMENT:

   • Candidate must possess valid wireman PW4 certificate from Suruhanjaya Tenaga (ST).

6. Procurement Assistant (Based In Kuantan)

   REQUIREMENT:

   • Candidate must possess diploma or degree in any field.
   • Experience in negotiable/purchasing.

Interested candidates please write-in with a detailed resume stating educational qualifications, experiences, current and expected salary and a recent passport-sized photograph to hr@rwna@rwna.com.my

Only applicants for Safety Health Officer, Safety Supervisor, QAHSE Engineer, Storekeeper, Programmer, and Technician Computer shall submit to ruzaima@rwna.com.my and cc to hr@rwna.com.my

If you have any inquiries regarding on the careers, don't hesitate to call +609-5839513

1. IT Department (Based in Kuantan)

   QUALIFICATION:

   • Certificate/Diploma/Degree in Information Technology or Any Other Related Fields
   • Preferable male




   JOB SCOPE:

   • Do repairing IT Hardware peripherals such as PC / Printer / Laptop & etc.
   • Do wiring & network cabling
   • Do preventive maintenance
   • Dedicated & good attitude person
   • Able to support, monitor and maintain IT infrastructure such as laptop, desktop computer, server, & networking
   • Able to solve/overcome network problem
   • Able to work extended hours
   • Internship position(s) for duration of 6 month(s).

2. Quality Assurance/Health Safety & Environment Department (Based in Kuantan)

   QUALIFICATION:

   • Candidate must possess or currently pursuing a Diploma or Bachelor's Degree in respective field or equivalent




   JOB SCOPE:

   • Internship position(s) for duration of 6 month(s).

3. On-site Service/Innovation & Production Department (Based in Kuantan)

   QUALIFICATION:

   • Candidate must possess or currently pursuing a Diploma or Bachelor's Degree in respective field or equivalent




   JOB SCOPE:

   • Internship position(s) for duration of 6 month(s).

4. Purchasing Department (Based in Kuantan)

   QUALIFICATION:

   • Candidate must possess or currently pursuing a Diploma or Bachelor's Degree in respective field or equivalent




   JOB SCOPE:

   • Internship position(s) for duration of 6 month(s).

5. Fabrication Department (Based in Kuantan)

   QUALIFICATION:

   • Candidate must possess or currently pursuing a Diploma or Bachelor's Degree in respective field or equivalent




   JOB SCOPE:

   • Internship position(s) for duration of 6 month(s).

6. Account Department (Based in Kuantan)

   QUALIFICATION:

   • Candidate must possess or currently pursuing a Diploma or Bachelor's Degree in respective field or equivalent




   JOB SCOPE:

   • Internship position(s) for duration of 6 month(s).

7. Administration Department (Based in Kuantan)

   QUALIFICATION:

   • Candidate must possess or currently pursuing a Diploma or Bachelor's Degree in respective field or equivalent




   JOB SCOPE:

   • Internship position(s) for duration of 6 month(s).

8. Human Resources Department (Based in Kuantan)

   QUALIFICATION:

   • Candidate must possess or currently pursuing a Diploma or Bachelor's Degree in respective field or equivalent




   JOB SCOPE:

   • Internship position(s) for duration of 6 month(s).

9. Logistic Department (Based in Kuantan)

   QUALIFICATION:

   • Candidate must possess or currently pursuing a Diploma or Bachelor's Degree in respective field or equivalent




   JOB SCOPE:

   • Internship position(s) for duration of 6 month(s).

10. Electrical & Instrument Department (Based in Kuantan)

    QUALIFICATION:

    • Candidate must possess or currently pursuing a Diploma or Bachelor's Degree in respective field or equivalent




    JOB SCOPE:

    • Internship position(s) for duration of 6 month(s).

Interested applicants please write-in with a detailed resume to internship@rwna.com.my

If you have any inquiries regarding on the careers, don't hesitate to call +609-5839513

LOCATIONS

• Kuantan Office & Fabrication Yard
  (Main Operation Centre)
  Lot 1/129, Kawasan Perindustrian Gebeng Fasa 2,
  26080 Kuantan, Pahang, Malaysia.
  Tel: +(609) 5839 511/12/13/15/
         +(609) 5807 153 / 5807 154
  Fax: +(609) - 583 9510/5008
• Kuala Lumpur Office
  Lot 5.48th Floor,
  Wisma Central, Jalan Ampang,
  50450 Kuala Lumpur, Malaysia.
  Tel: +(603) - 2161 4850/4831
  Fax: +(603) - 2161 4890

• Paka Office & Warehouse
  PT203 Pusat Niaga Paka,
  23100 Paka, Dungun,
  Terengganu, Malaysia.
  Tel: +(609) - 8270 728
• Sungai Udang Office & Warehouse
  No. 26A, 26B Jalan Wira Bakti 2,
  Taman Peruna,
  76300 Sungai Udang, Melaka, Malaysia.
  Tel: +(606) - 3515 288
  Fax: +(606) - 3514 288

• Miri Office & Warehouse
  Lot 1583, Eastwood Valley Industrial Area,
  Jalan Miri - By Pass, Miri,
  98000 Sarawak, Malaysia.
  Tel: +(6085) - 420 602
  Fax: +(6085) - 423 739

• Pengerang Office & Warehouse
  Block H, G-09, Jalan Rengit 1/2,
  Taman Rengit Sentral,
  81600 Sungai Rengit Pengerang, Johor, Malaysia
  Tel: +(07) 822 4618


• ABOUT
• SERVICES
• POLICIES
• PROJECTS
• CLIENTS
• RECOGNITIONS
• CAREERS
• INDUSTRIAL TRAINING
• CONTACT
•
•
